Features:
5 Inch 800*480 dot high brightness LCD screen;
Double antenna reception to make the signal more stable;
Real-time video return, Very low time-delay;

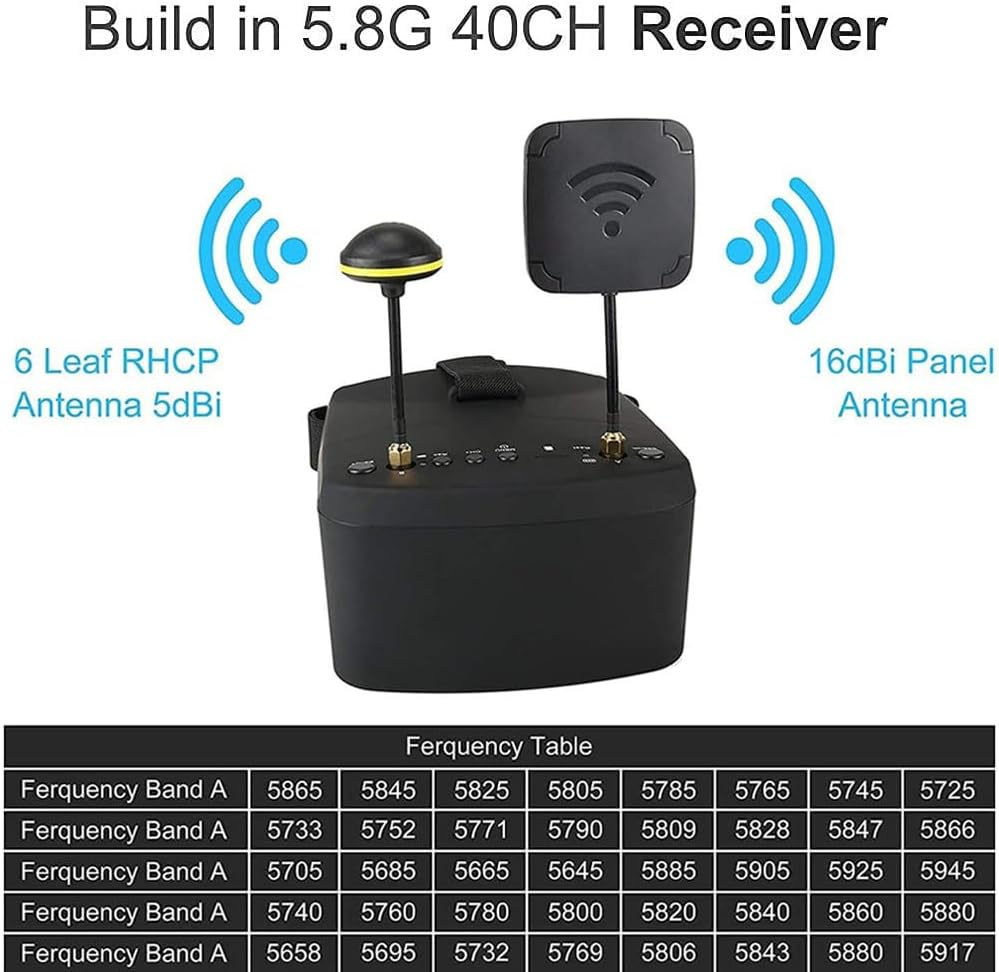

Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
This is compatable with arris x- speed 250b racing drone;
Our FPV goggles, which can be applied without glasses, nearsighted people can also use it;
These goggles will work with any drone that has an analog VTX;
Low power consumption;
Specification:
Screen size: 5 Inch
Resolution: 800*480
Display Ratio: 16:9
View Angle: 6 o'clock
Brightness: 300cd/m² with high brightness backlight LED
Video delay: video time-delay less than 20ms
Lens: 2.8X Fresnel Lens, 92% transparent rate no distort of light
Antenna: 2 X RP-SMA male
USB Port: To charge the battery
AV Jack: External video signals input or internal Audio signal output
Languages: English and Chinese
Power adapter: DC5V/1A (USB interface)
Battery: 3.7V/1200mAh,Each full charge revive around 2.5hr working time
Power Consumption:
*The device operating current of 400mA at 3.7V
*Built-in battery maximum charge current of 500mA

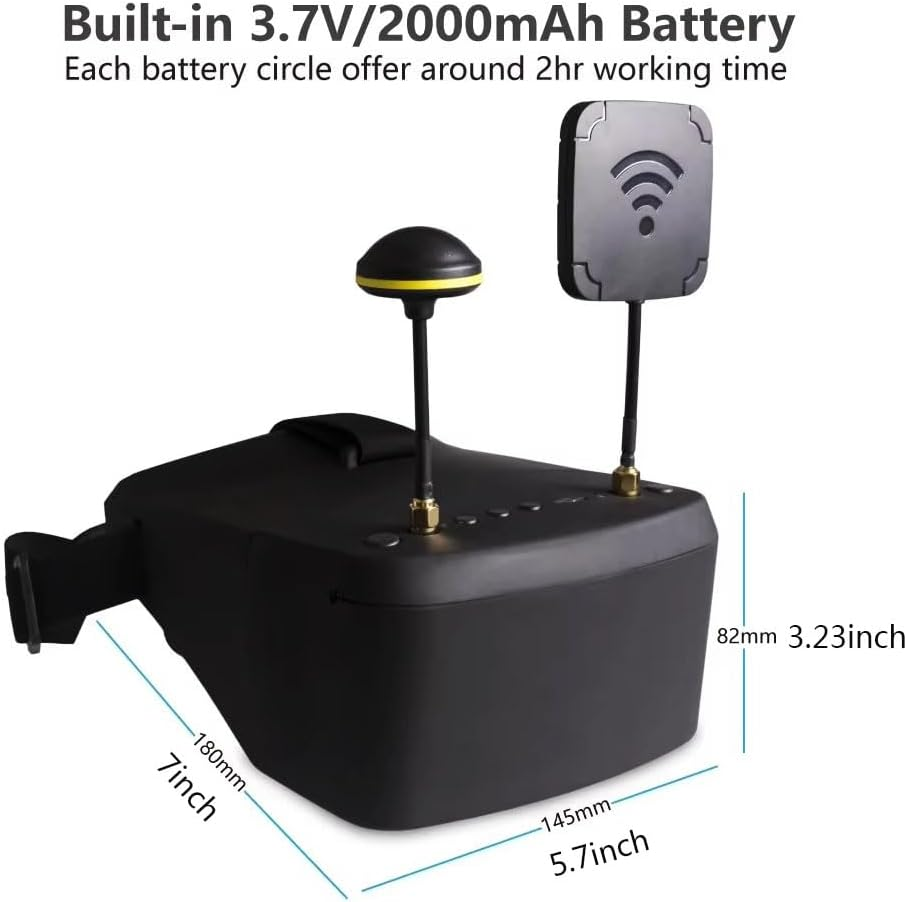

Dimension: 180mm * 140mm * 84mm
Weight: 710g

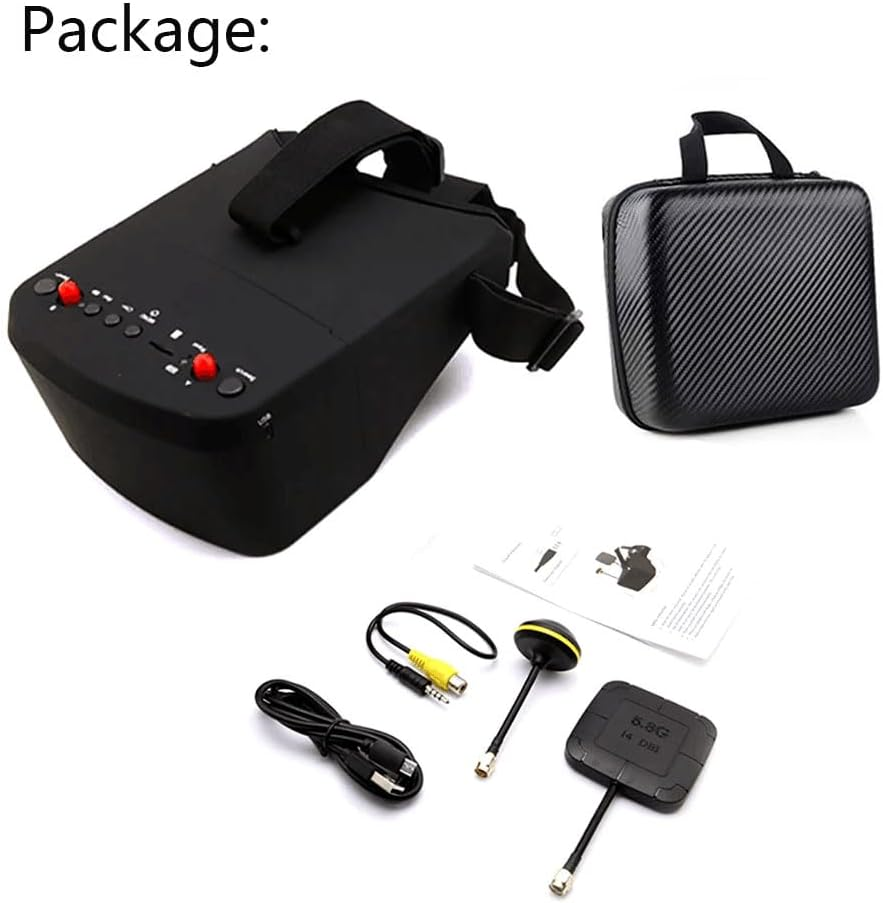

Package Included :
● 1 x EV800D 40CH 5.8G Diversity Goggles with Battery
● 1 x 6 Leaf RHCP Clover Antenna
● 1 x Panel Antenna
●1 x Battery Charger
●1 x User Manual
●1 x Clean cloth
● 1 x Bag
