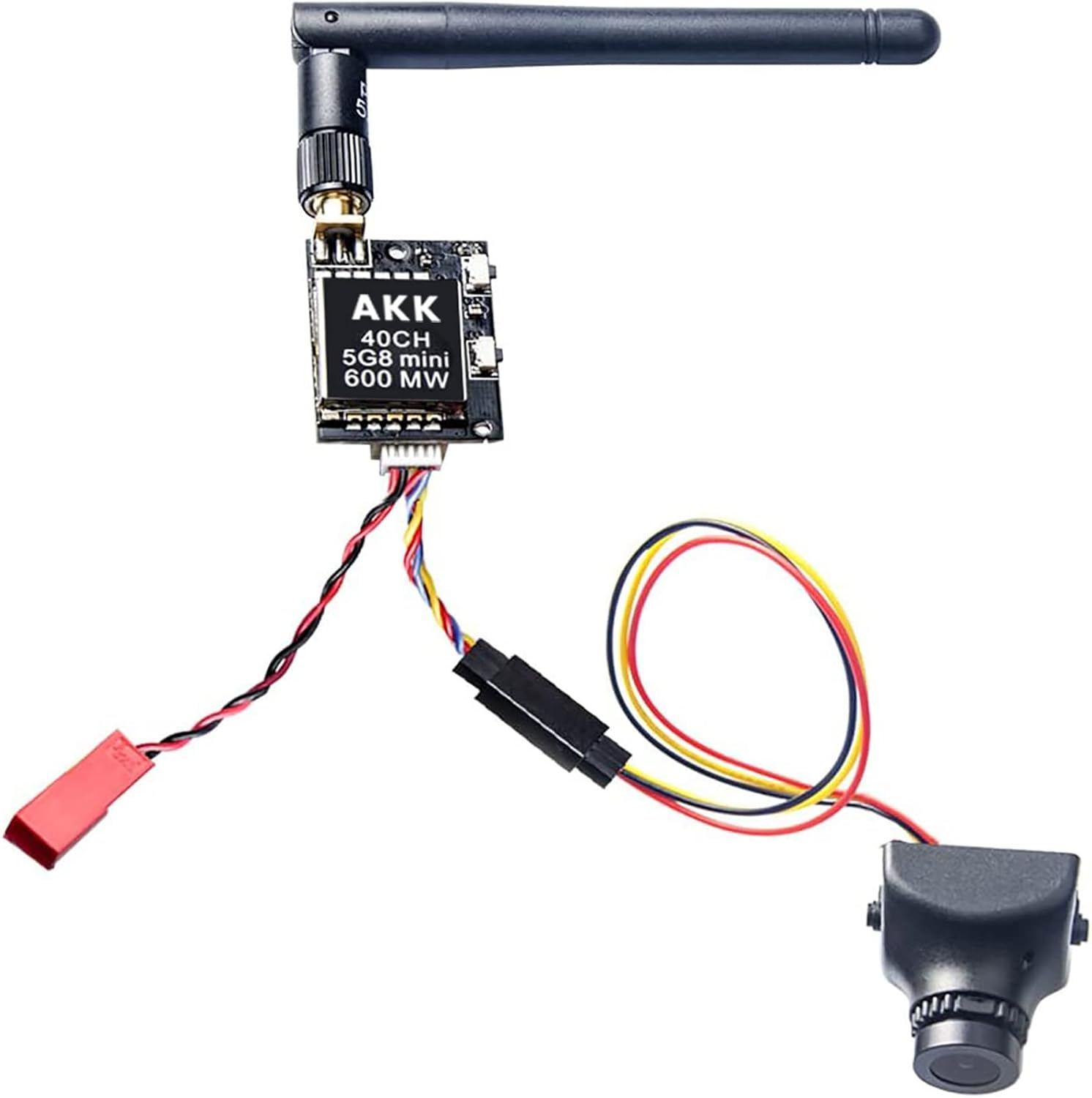

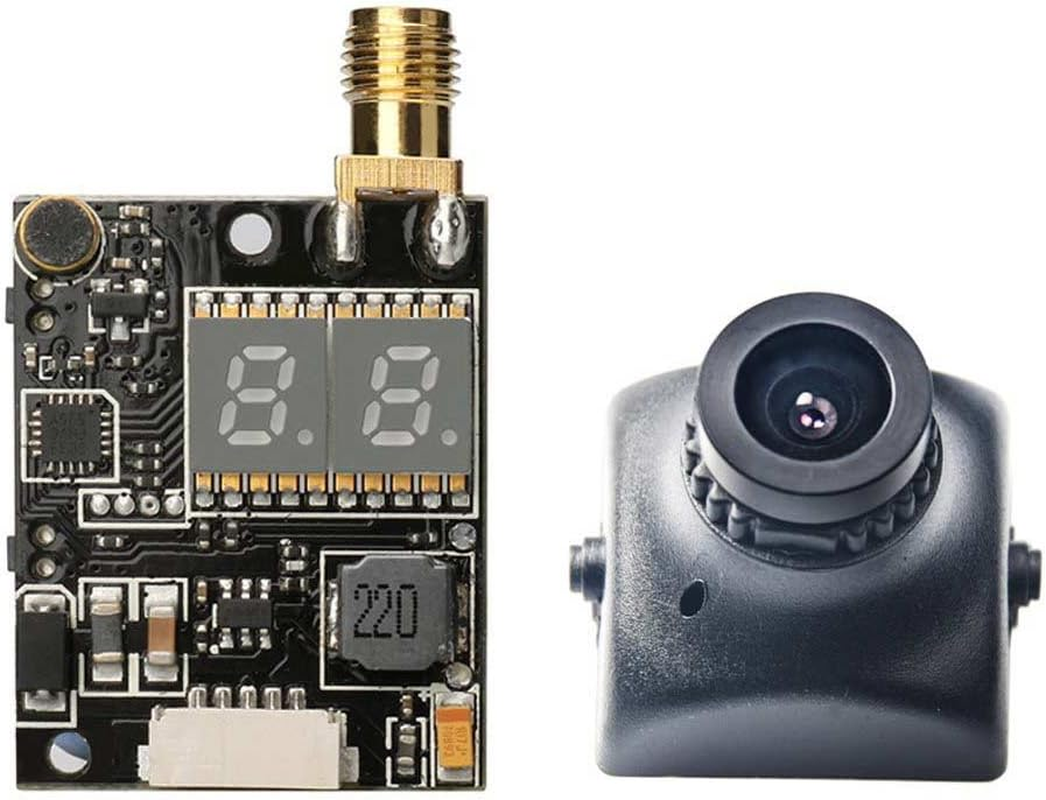

AKK KC04 5.8G 600Mw FPV Transmitter 700TVL 2.8Mm 120 Degree FPV Camera for Racing Quadcopter

AKK KC04 5.8G 600Mw FPV Transmitter 700TVL 2.8Mm 120 Degree FPV Camera for Racing Quadcopter

Brand: AKK
3.6
A$73.25
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

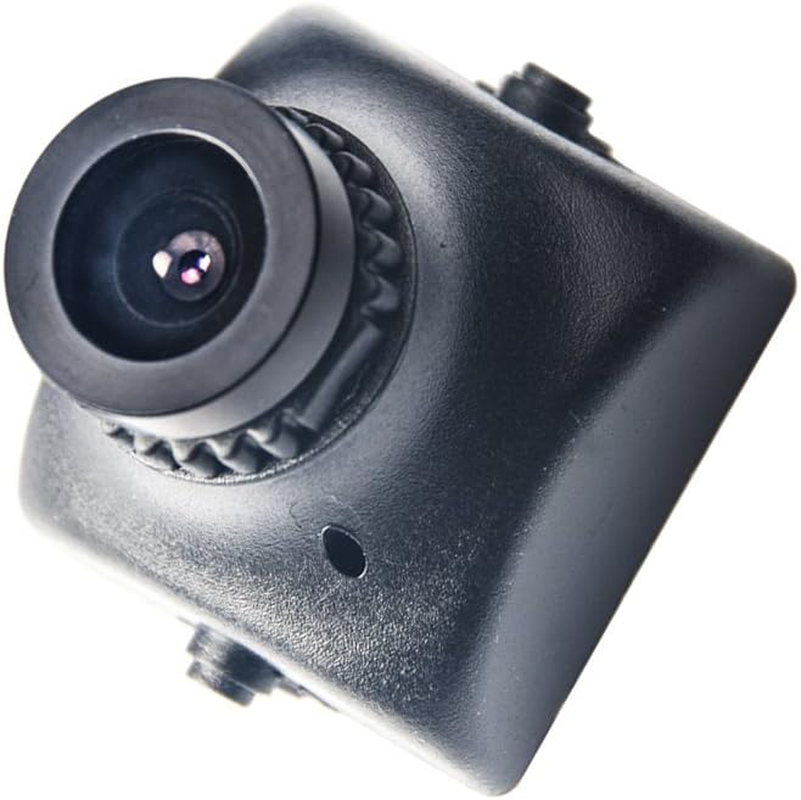

  • 700TVL Resolution, 2.8mm Lens Camera
  • Small size and light weight, Signal System: NTSC
  • VTX has 5V output for camera, no need extra battery for cam.

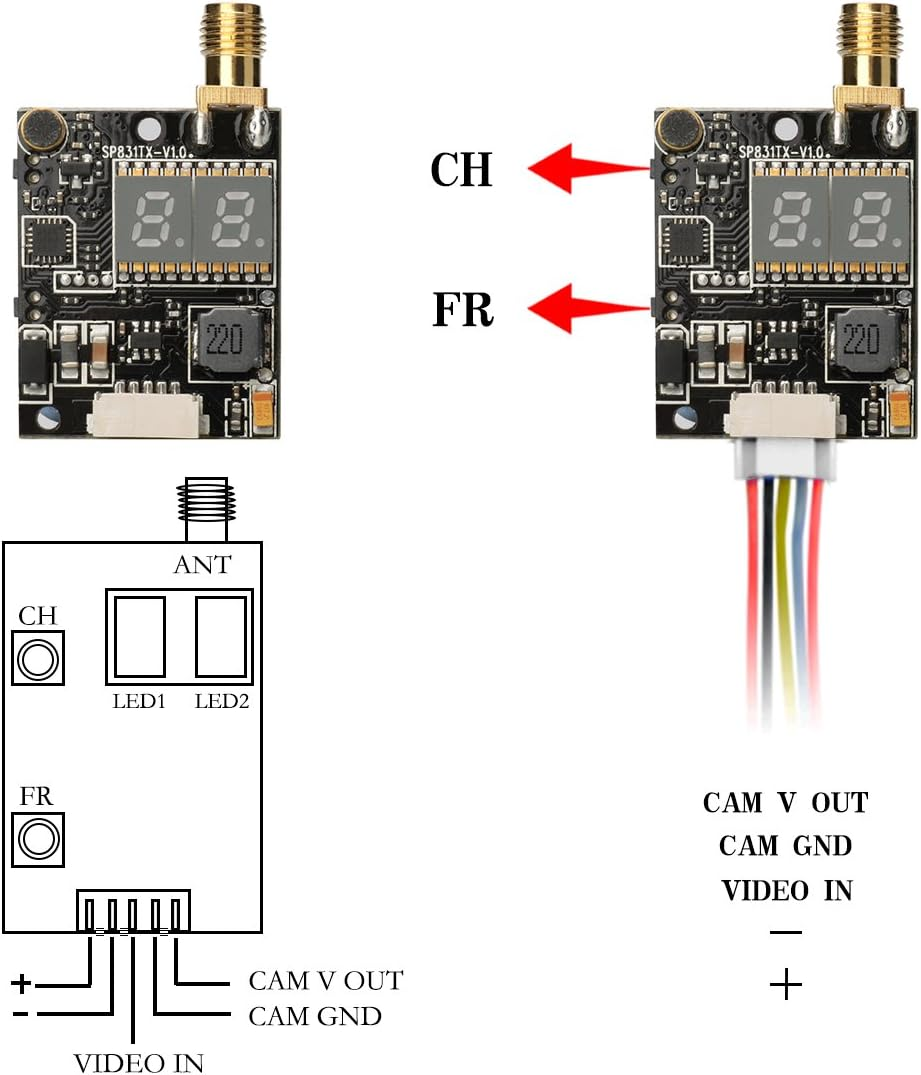

  • The transmitter has double push buttons for easy changing CH and FR
  • A RTF FPV System for beginners, Suitable for all quadcopters and drones.

Specifications of Camera: Resolution: 700TVL Size: 25* 25mmNet weight: 9.5g Total pixels: NTSC: 1020H508V Pixels: NTSC: 976H494V Signal System: NTSC Video output: 1.0Vp-p/75 Automatic gain: 0.25/0.50/0.75/1.00 ;Can be up to 55dB White Balance: automatic Electronic Shutter: 1/50(1/60)~1/100000S Gamma Correction: 0.45/1.0 Synchronization : internal Lens: 2.8mm Power Supply: 5-12V Power Consumption: 70mA Working Temperature: -20 C ~ 60CSpecification of Transmitter: Video Format: NTSC Output Impedance: 50 Ohm Transmitting distance 3000m (open area) Antenna connector: RP-SMA connector Operating Voltage: 7-20V Output Voltage(VOUT): 5VSupply current: 280 mA Operating Temperature -10 +85 C Video Band Width: 0-8.0 MHz Audio carrier Frequency: 6.5 MHz Video Input Level: 0.8,1.0,1.2 Vp-p Video Input Impedance: 75 Ohm Audio Input Level: 0.5 ,2.0 Vp-p Audio Input Impedance: 10K OhmPackage includes: 1x 5.8G FPV transmitter 1x 700TVL 2.8mm Lens Camera 1x 5.8G antenna 1x Connector and cable set1x ManualNote: Please plug antenna before powering on the vtx to avoid static electricity.

  • Item Model Number: K-C04
  • Colour: White
  • Item Weight: 67.9 g
  • Special features: realistic_sound, flashing_light, Lightweight
  • Manufacturer: AKK
  • Is discontinued by manufacturer: No
  • Package Dimensions: 9.6 x 6.81 x 5.59 cm; 68.04 Grams
  • Other display features: Automotive Parts and Accessories
