Milescraft 1220 Hinge Mate 350- Complete Hinge Installation Kit

Description

Hang doors like a professional with the HingeMate350. Whether you are installing new doors, or replacing or repairing existing doors, this kit comes with all the templates and hardware required to route doors and jambs for hinge, strike, and latch plates. Compatible with 1-3/8in. and 1-3/4in. doors, and hinges that are 2-1/2in., 3in., 3-1/2in., 4in., and 4-1/2in. An extra included self-centering hinge bit makes drilling pilot holes and mounting your hinges quick and easy.

This kit is perfect for home improvement projects. With the included 1/2in. router bit, your router will travel along the edge of the template, creating beautiful hinge mortises. A durable, steel template frame automatically aligns and removes the guesswork to get the job done quickly and accurately. The included mounting hardware secures the jig to eliminate rocking or movement when you are routing. This kit will provide you beautiful 5/8in. or 1/4in.” radius hinges. Extra value is added to the HingeMate350 with the included corner chisel. The CornerChisel automatically aligns to cut 90°corners for square hinges.

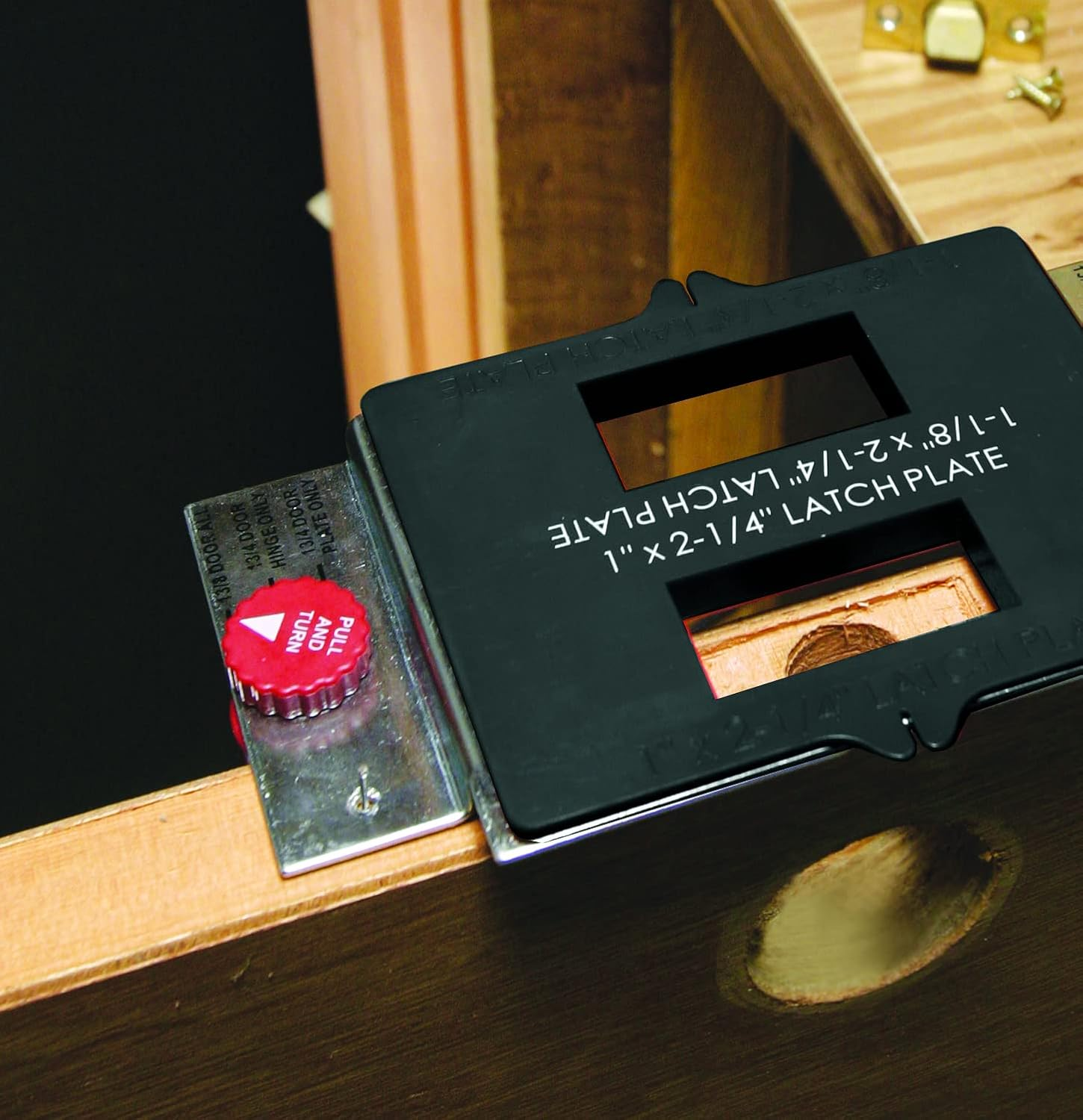

Steel Template Frame

Durable steel frame with adjustable cams

Automatically adjusts for 1-3/4in. and 1-3/8in. thick doors

Can be mounted to both door and jamb

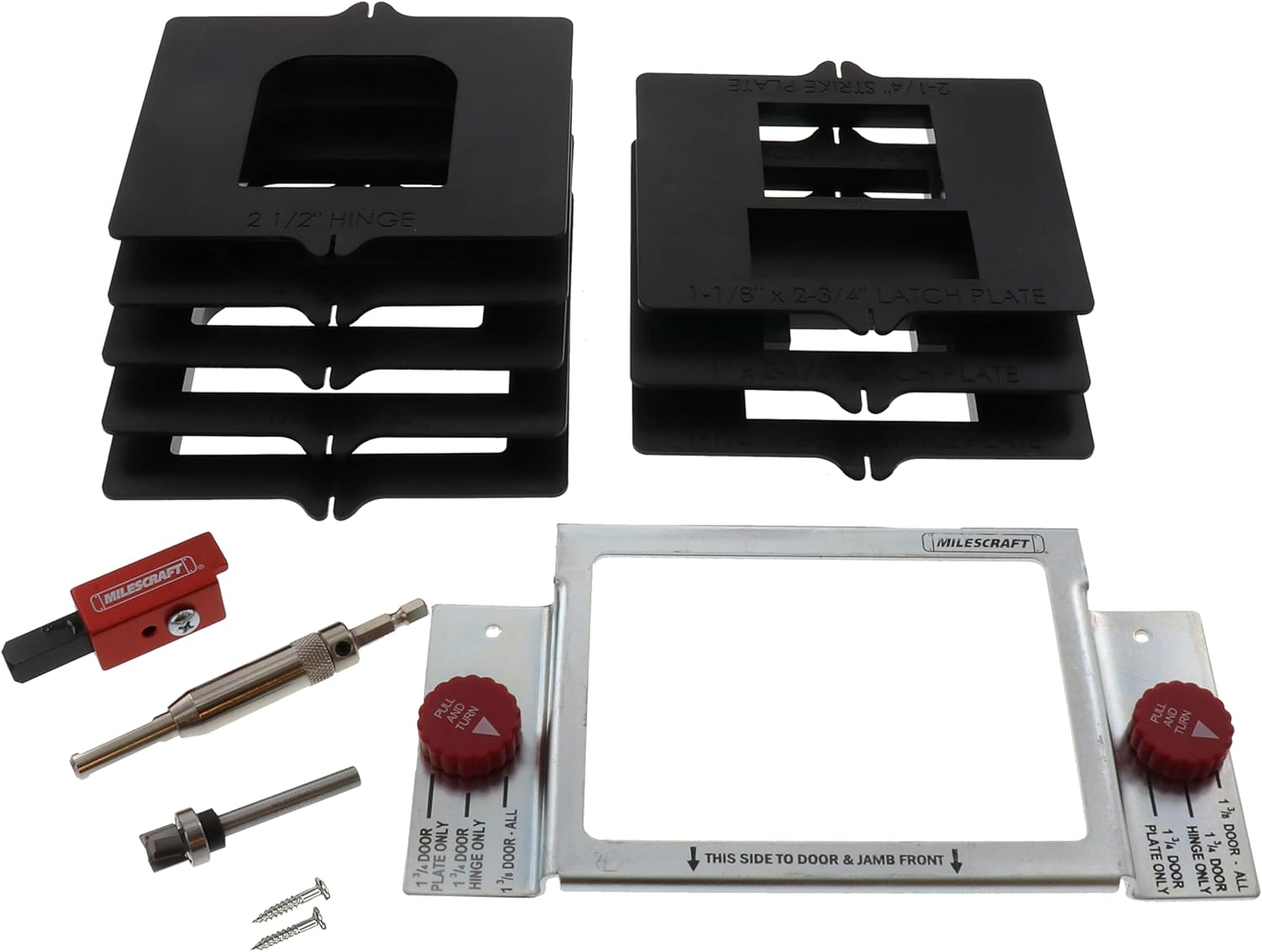

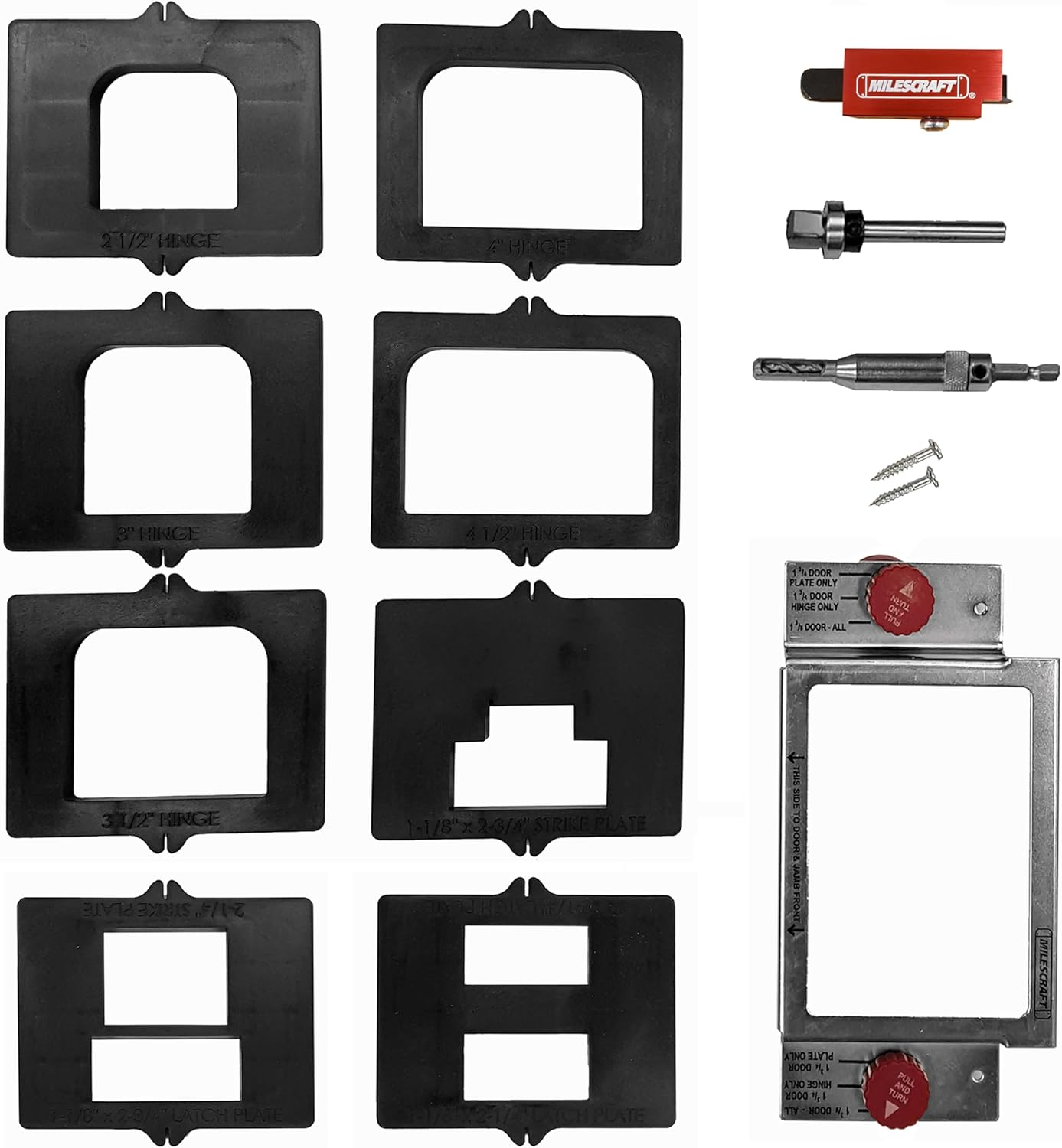

Templates

Contains eight templates needed to rout hinge, strike plate, and latch plate mortises. Hinge templates can be rotated to achieve 5/8in. radius or 1/4in. radius

1/2in. Router Bit Included

Tip made of durable tungsten carbide. Router bit with ball bearing eliminates the need for a bushing

#8 Hinge Bit Included

Pre-drill perfectly centered holes for proper alignment of hinges with this spring-loaded, self-centering drill bit

Corner Chisel Included

Hardened steel, self-aligning chisel required to mortise 90° hinges, strikes and latches

Specifications
