NOAUKA aims at bringing high quality products and best service to our customers.We believe that
only customers have a good shopping experience, we can make better progress

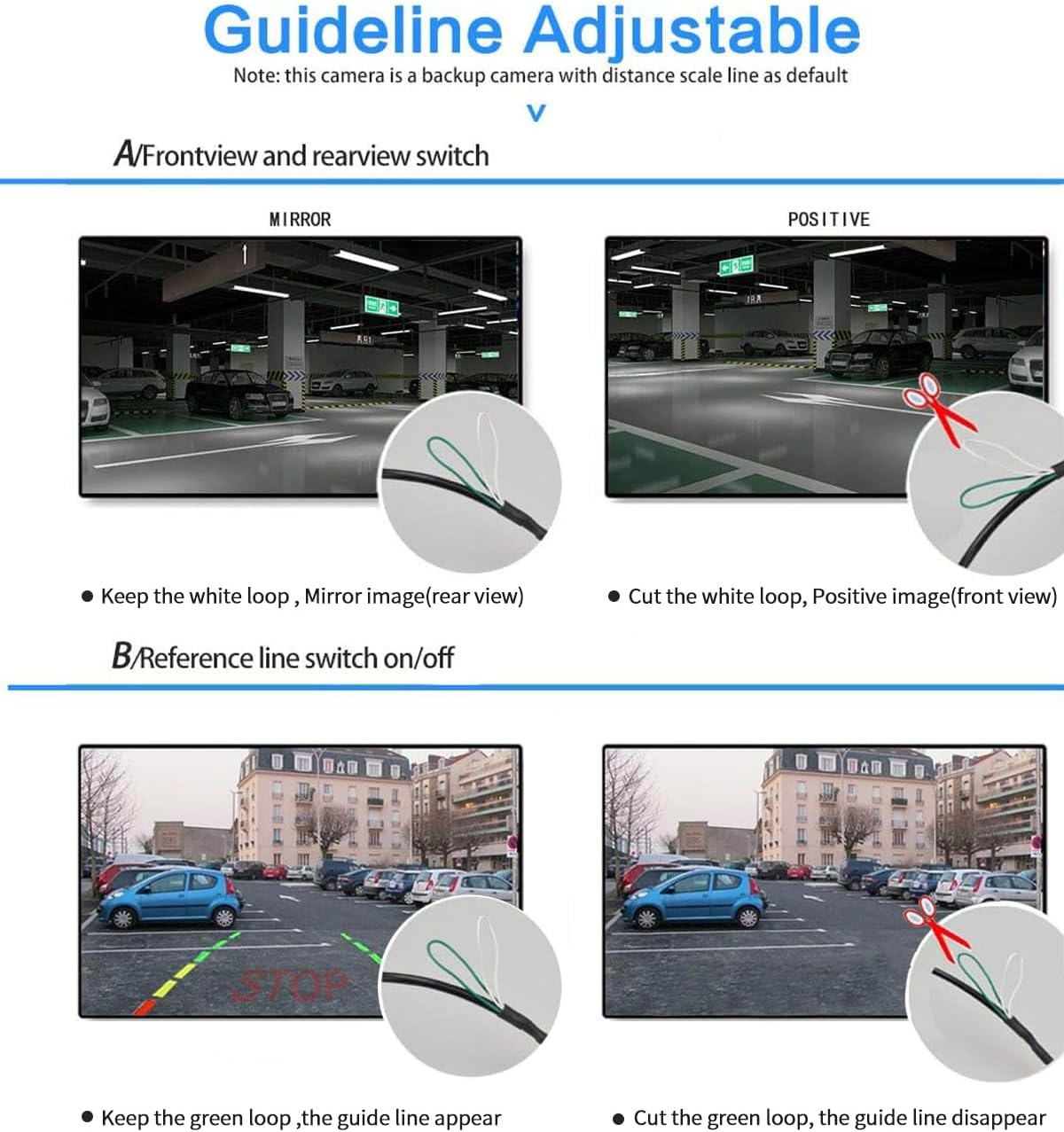

Unique Design:
This camera can be used as backup camera/side view camera and front camera,you also
can chose distance scale line or no.If you want to switch,the procedure is as follows:
1.If you need a backup camera without distance scale line,please cut the white wire.
2.If you need a front camera with distance scale line,please cut the green wire.
3.If you need a front camera without distance scale line,please cut the both green and white wire.
Note:this camera is a backup camera with distance scale line as default.
Remember to turn off the power before switching
White Switch Wire: Distance scale Line (Yes/No) Switcher
Green Switcher Wire: rear /front (side) camera switcher
Specifications:
Color: Black
Image Sensor: HD Color CMOS Image
TV System: NTSC
Effective Pixels: 1280*720pixels
Horizontal Resolution: 720TVL
Scanning System:2:1 Internet
Minimum Illumination: 0.1Lux/F1.2 (0Lux with LED)
Power Supply: DC 12V
Lens angle: 170 Degree
Waterproof: IP68
White balance: Auto
Operating Temperature: -30℃-75℃,RH 95% MAX
Storage Temperature: -40℃-95℃,RH 95% MAX
Package Including:
1x rear view Camera(Function Switcher)
1x Power supply Cable
1x Video Cable(6M)
1xFixing screws
1x English Users' Manual
