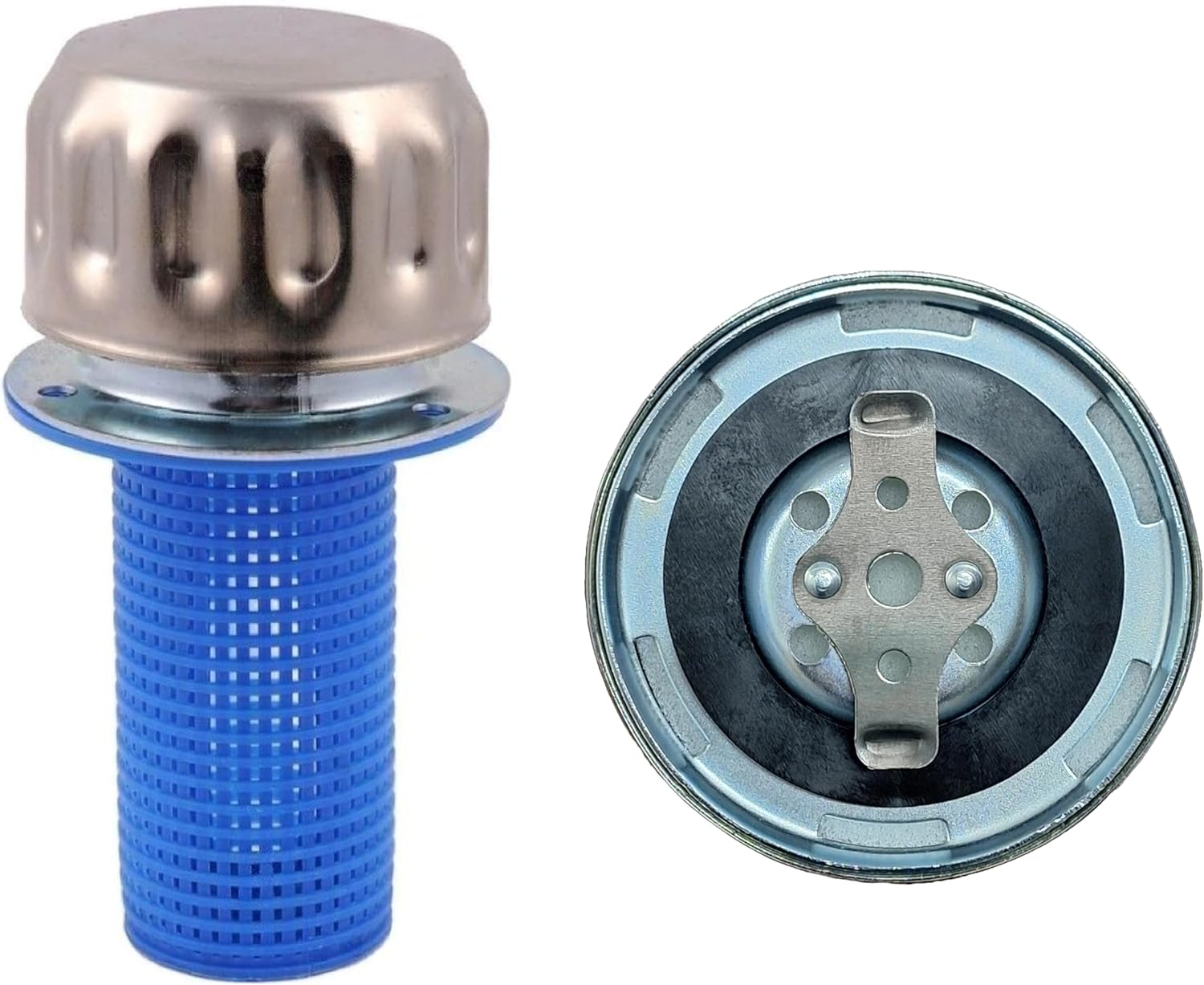

Hydraulic Oil and Fuel Filler Breather Vent Metal Cap for Reservoir Tank (With Strainer, Bayonet Lock, 304 (18/10) Grade Stainless Steel, Tearproof Gasket)

Hydraulic Oil and Fuel Filler Breather Vent Metal Cap for Reservoir Tank (With Strainer, Bayonet Lock, 304 (18/10) Grade Stainless Steel, Tearproof Gasket)

Brand: ÜREL
5.0
A$17.80 - A$25.75
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Features a tearproof, long-life inner gasket compared to ordinary cork-gasketed hydraulic caps.
  • The outer surface of the cap is made of high quality AISI 304 (18/10) grade premium stainless steel, offering both an attractive appearance and exceptional resistance against rust.
  • It is closed by turning a quarter turn with a bayonet-type locking mechanism.
  • Metal cap diameter: 78.5 mm.
  • Mounting flange outer diameter: 84.6 mm.
  • Mounting flange inner diameter: 38.6 mm.
  • Includes unbreakable plastic strainer, mounting flange and 3 pcs M5x12 Phillips head screws.
  • Factory-to-consumer (F2C) sale. This hydraulic cap is our own production. We provide high quality at reasonable prices.

Product Description

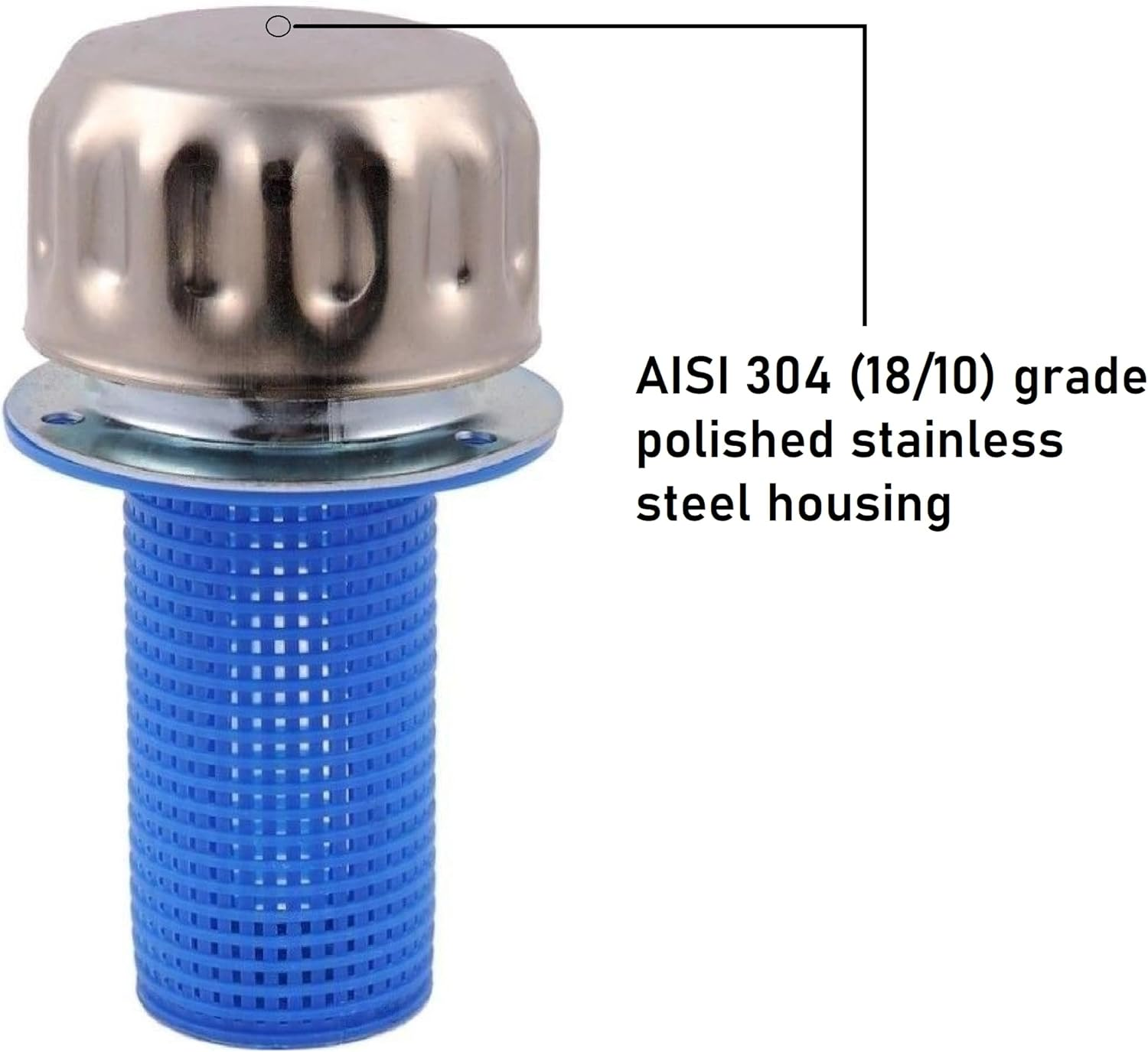

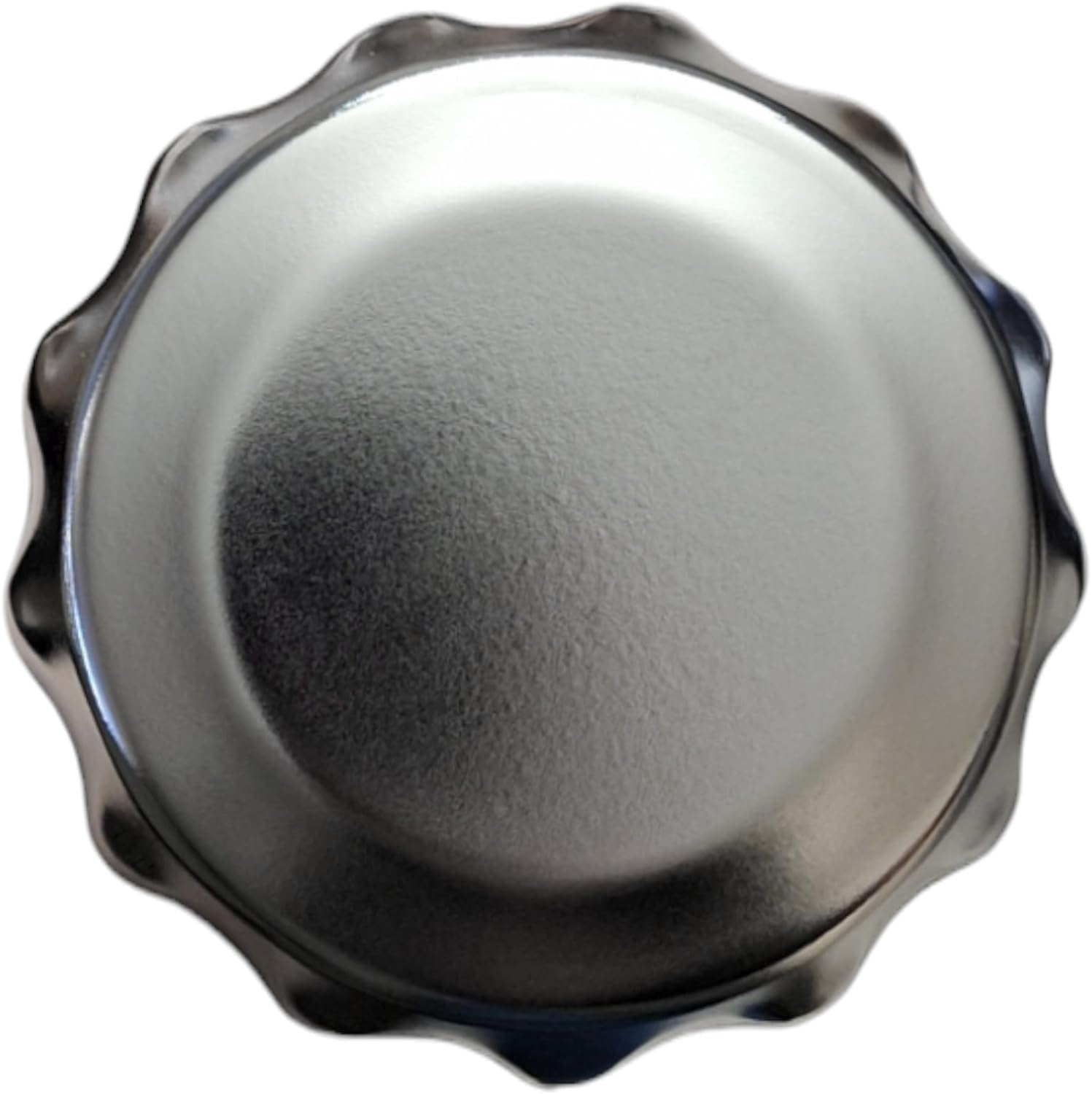

AISI 304 grade premium stainless steel housing

The outer surface of the cap is made of high quality AISI 304 (18/10) grade stainless steel, offering both an attractive appearance and exceptional resistance against rust.

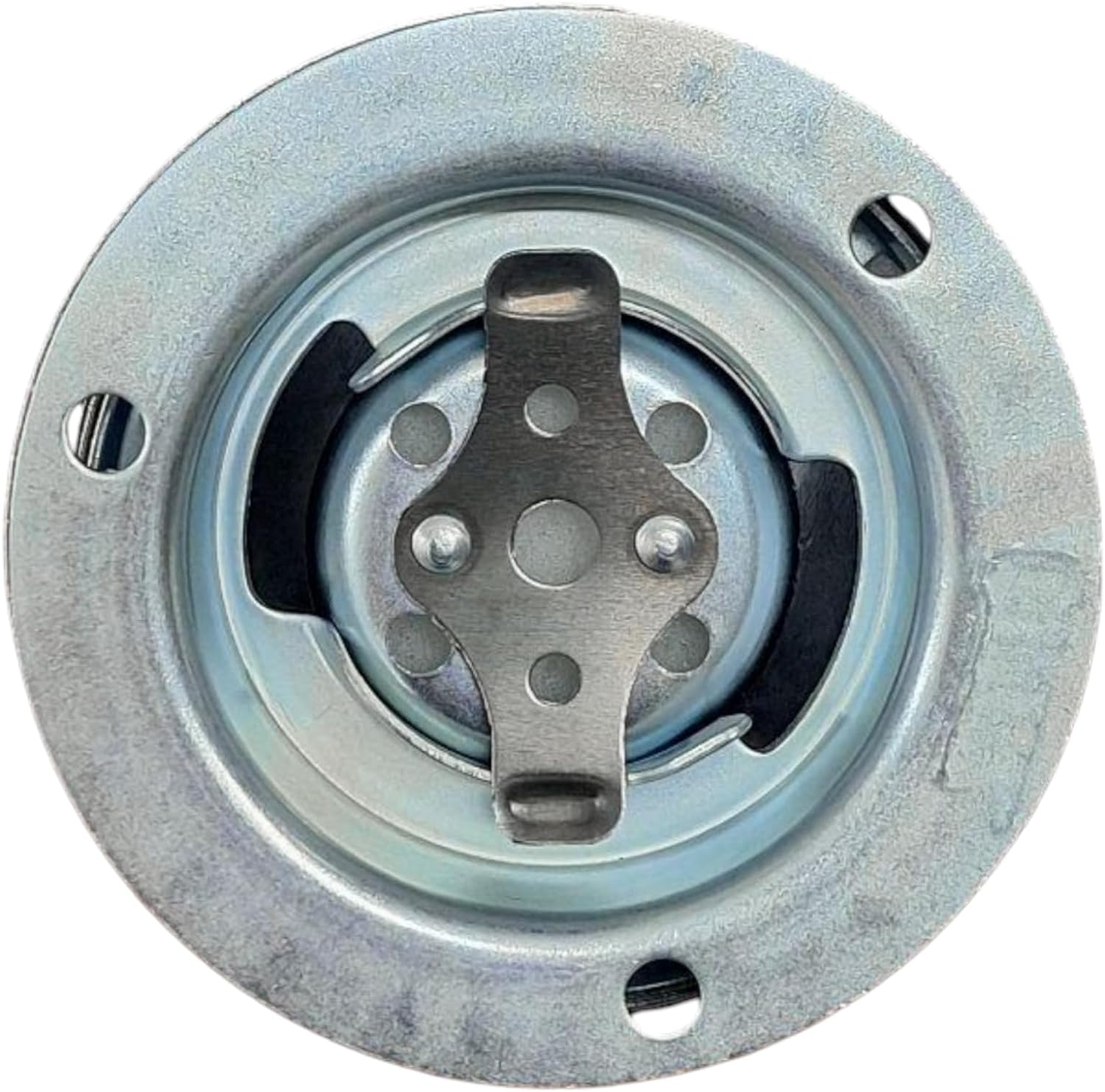

Contains tearproof inner gasket

Features a tearproof, long-life inner gasket compared to ordinary cork-gasketed hydraulic caps.

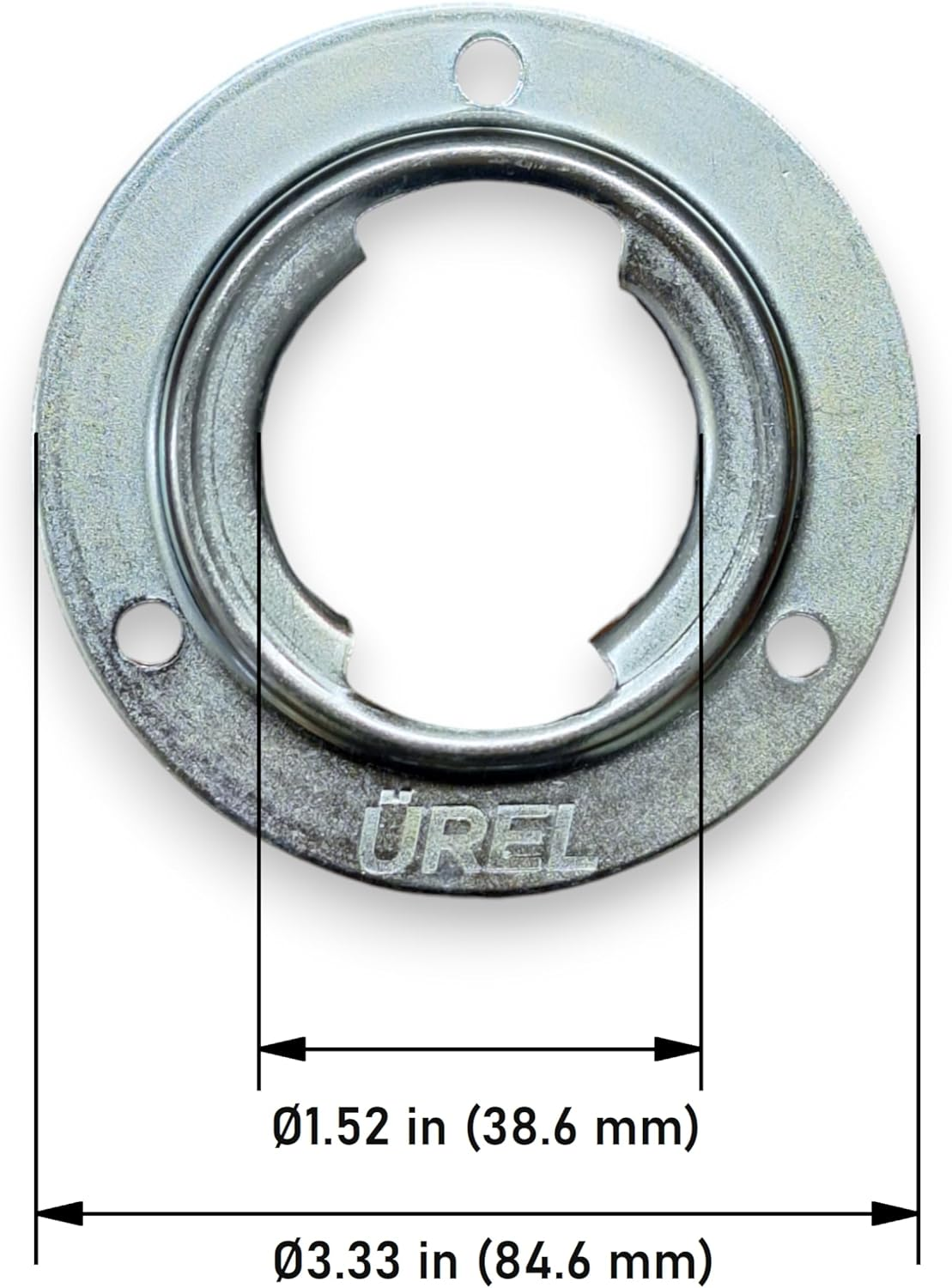

Mounting flange is included

This mounting flange is suitable for welding onto the hydraulic tank.

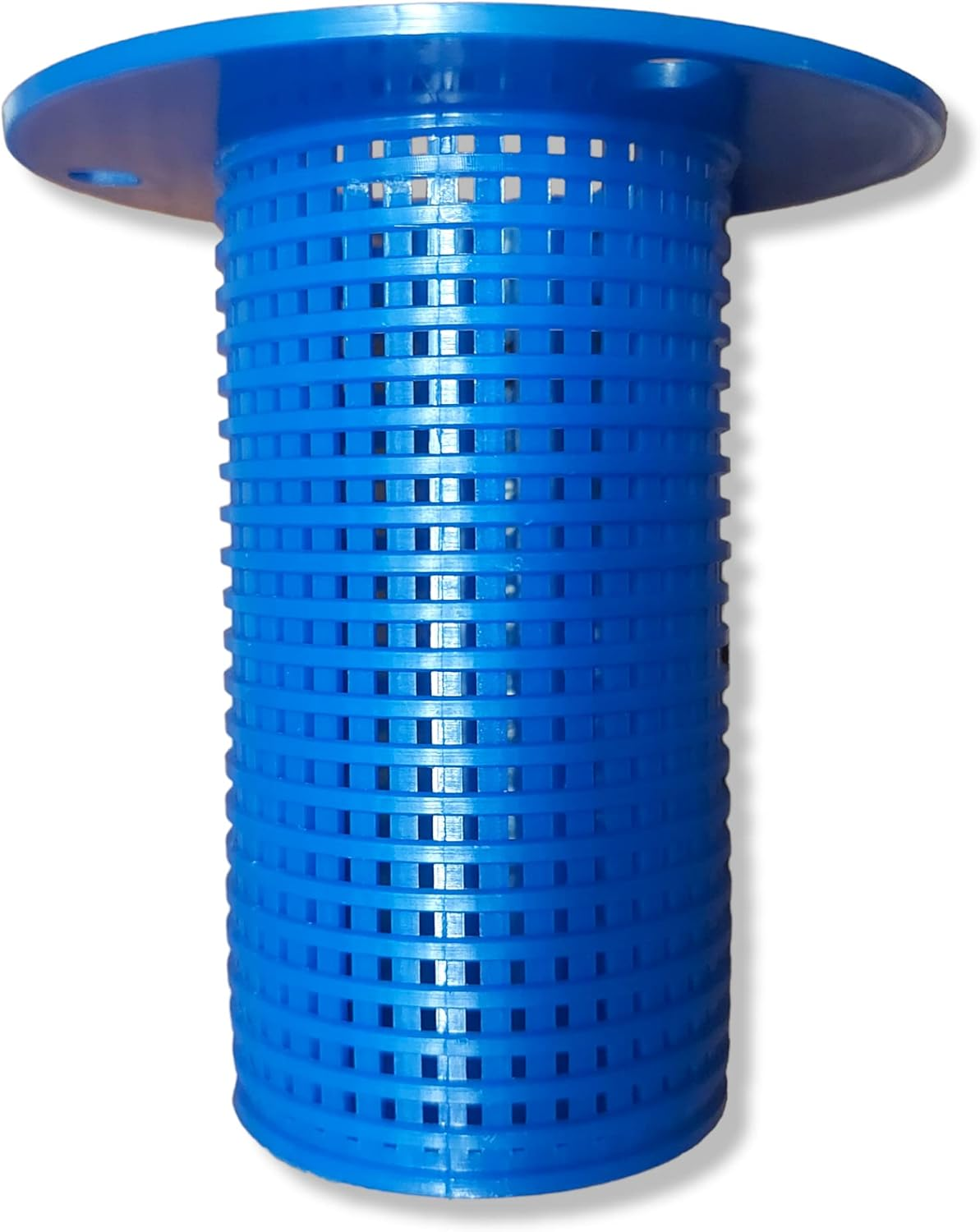

Unbreakable plastic strainer

Elastic unbreakable plastic strainer, which provides a seal between the reservoir and mounting flange of the cap, also filters impurities in the liquid being filled.

3 pcs M5x12 screws are included

Technical Specifications

Metal cap diameter 78.5 mm
Mounting flange outer diameter 84.6 mm
Mounting flange inner diameter 38.6 mm
Housing material AISI 304 (18/10) grade stainless steel
Closure type Bayonet
Gasket type Tearproof
Mounting flange Included
Plastic strainer Included
Electroplating types Blue zinc Cr3+ (inner components)
Screw type M5x12 (3 pcs)
  • Item Model Number: A1009-TG304
  • Size Name: Tearproof Gasket
  • OEM Part Number: A1009-TG304
  • Country of origin: Turkey
  • Brand: ÜREL
  • Material Type: Stainless Steel
  • Manufacturer Part Number: A1009-TG304
  • Item Weight: 170 g
  • Exterior: Polished
  • Model: Hydraulic Filler Strainer Breather Metal Cap Vent Plug Bayonet Tearproof Gasket Stainless Steel
  • Package Dimensions: 17.3 x 8.7 x 8.3 cm; 170 Grams
  • Manufacturer: Ürel Makina
