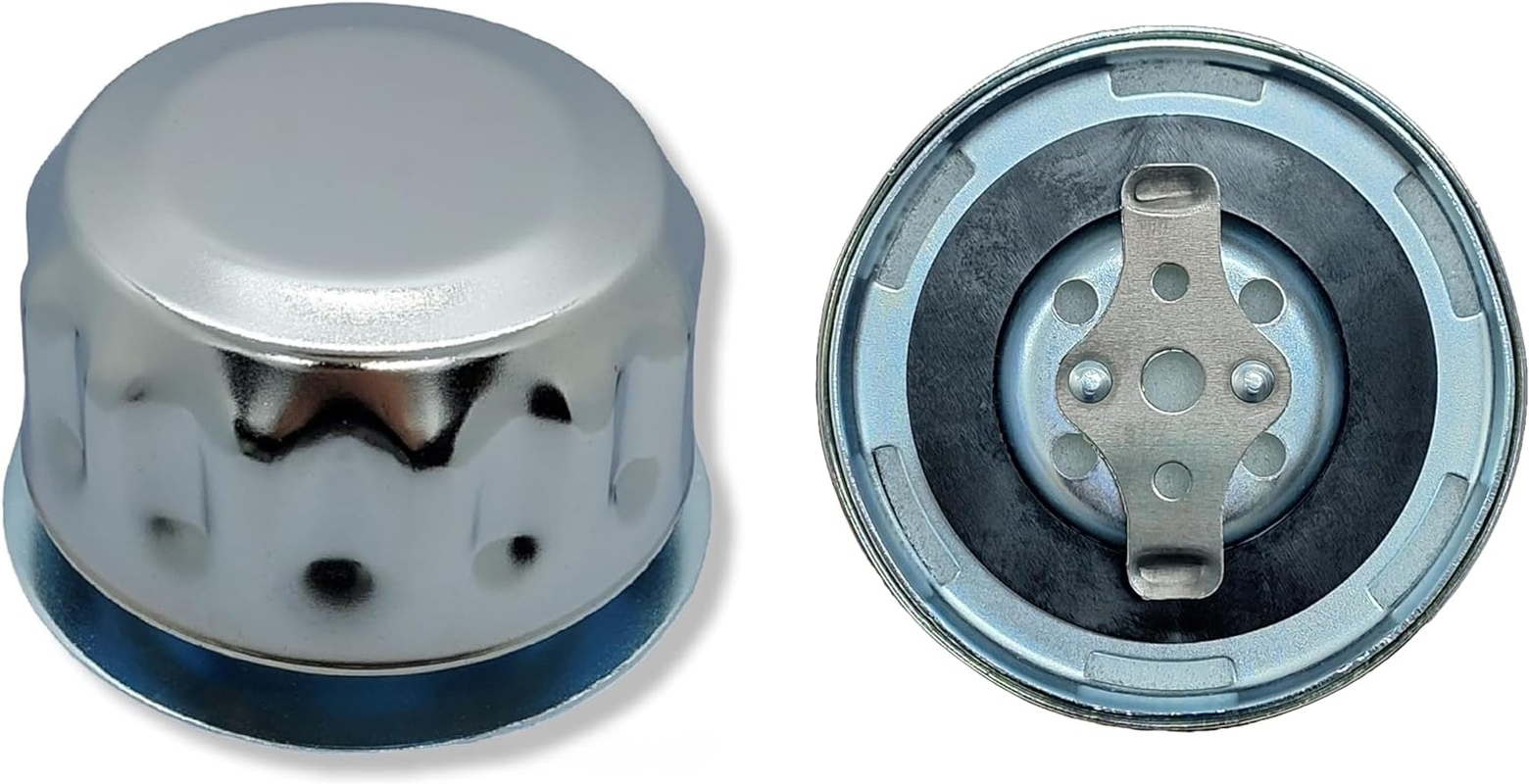

Hydraulic Oil and Fuel Filler Metal Vent Breather Cap for Reservoir Tank (With Flange, Bayonet Lock) (Stainless Steel, Tearproof Gasket)

Hydraulic Oil and Fuel Filler Metal Vent Breather Cap for Reservoir Tank (With Flange, Bayonet Lock) (Stainless Steel, Tearproof Gasket)

Brand: ÜREL
5.0
A$20.95 - A$24.10
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Features a tearproof, long-life inner gasket compared to ordinary cork-gasketed hydraulic caps.
  • Chrome plated exterior surface enhances the cap with a sleek shine, ensuring protection against corrosion.
  • It is closed by turning a quarter turn with a bayonet-type locking mechanism. Mounting flange and 3 pcs M5x10 Phillips head screws are included.
  • Metal cap diameter: 78.5 mm.
  • Mounting flange outer diameter: 84.6 mm.
  • Mounting flange inner diameter: 38.6 mm.
  • Factory-to-consumer (F2C) sale. This hydraulic cap is our own production. We provide high quality at reasonable prices.

Product Description

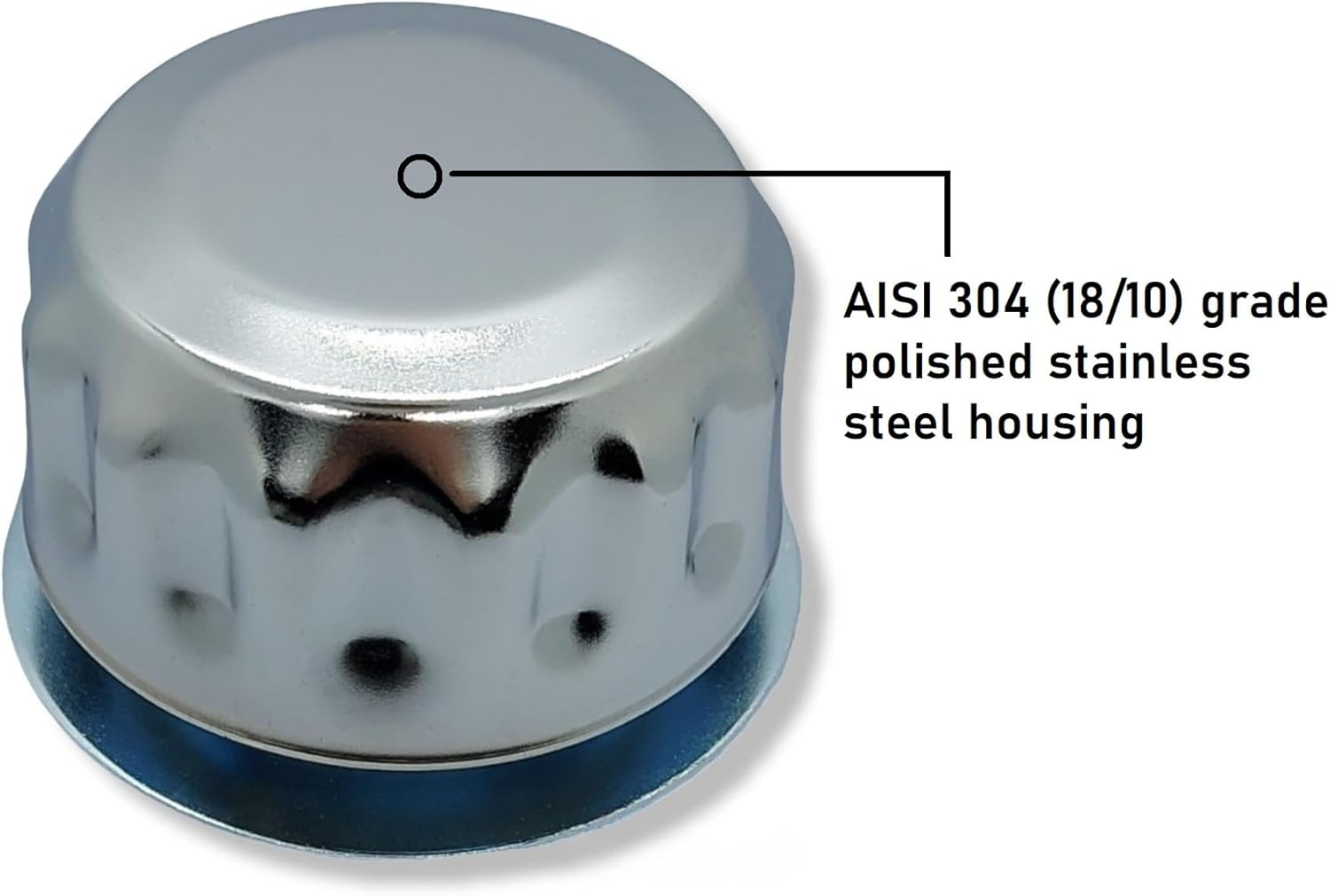

AISI 304 grade premium stainless steel housing

The outer surface of the cap is made of high quality AISI 304 (18/10) grade stainless steel, offering both an attractive appearance and exceptional resistance against rust.

Mounting flange is included

This mounting flange is suitable for welding onto the hydraulic tank.

Contains tearproof inner gasket

Features a tearproof, long-life inner gasket compared to ordinary cork-gasketed hydraulic caps.

3 pcs M5x10 screws are included

Technical Specifications

Metal cap diameter 78.5 mm
Mounting flange outer diameter 84.6 mm
Mounting flange inner diameter 38.6 mm
Housing material AISI 304 (18/10) grade stainless steel
Closure type Bayonet
Gasket type Tearproof
Mounting flange Included
Plastic strainer Excluded (cap only)
Electroplating types Blue zinc Cr3+ (inner components)
Screw type M5x10 (3 pcs)
  • Item Model Number: A1009-WSTG-304
  • Size Name: Tearproof Gasket
  • Country of origin: Turkey
  • Brand: ÜREL
  • Material Type: Stainless Steel
  • Manufacturer Part Number: A1009-WSTG-304
  • Item Weight: 190 g
  • Exterior: Chrome
  • Model: Hydraulic Filler Breather Cap Bayonet Tearproof Gasket with Flange
  • Package Dimensions: 9.3 x 8.8 x 5.4 cm; 190 Grams
  • Manufacturer: Ürel Makina
